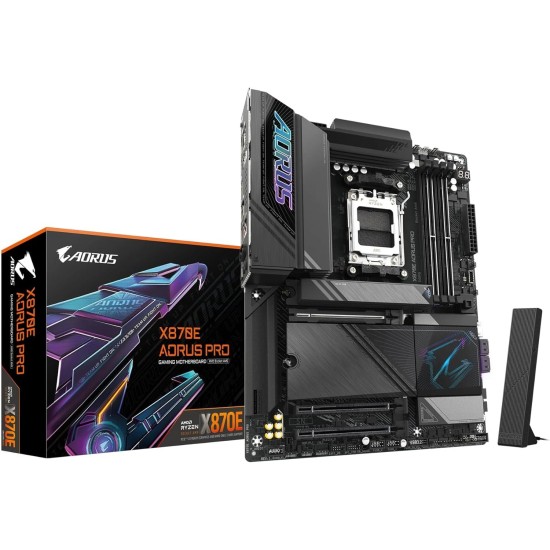

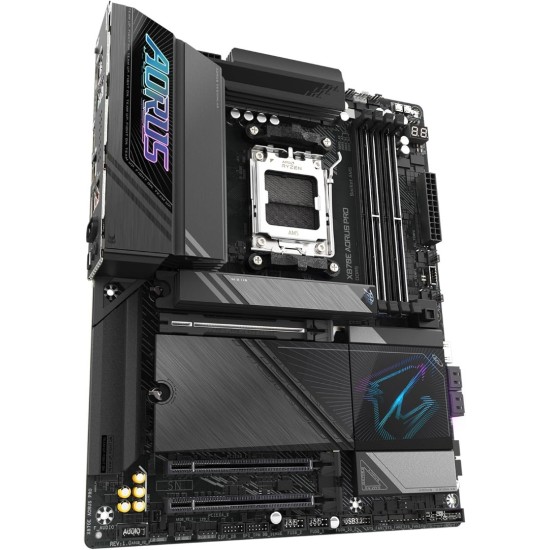

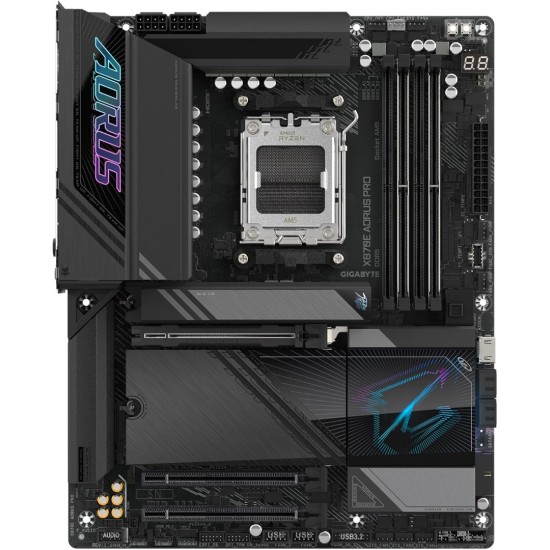

Gigabyte X870E AORUS PRO, Motherboard

Motherboard Specification

CPU Socket: AMD Socket AM5

Chipset: AMD X870E

Memory: 4 x DDR5 DIMM, up to 256 GB, Dual channel, Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s, AMD EXPO™ and XMP support

Graphics: Integrated AMD Radeon™ Graphics, 2 x USB4® Type-C® (3840x2160@240Hz), HDMI 2.1 (4096x2160@60Hz), HDMI 1.4 (1920x1080@30Hz)

Audio: Realtek® ALC1220 CODEC, High Definition Audio 2/4/5.1/7.1-channel, S/PDIF Out

Networking: Realtek® 2.5GbE LAN, Qualcomm® Wi-Fi 7 (802.11a/b/g/n/ac/ax/be), Bluetooth 5.3

Expansion Slots:

1 x PCIe x16 (PCIe 5.0 x16 or x8)

1 x PCIe x16 (PCIe 4.0 x4)

1 x PCIe x16 (PCIe 3.0 x4)

Storage Interface:

1 x M.2 (PCIe 5.0 x4/x2)

2 x M.2 (PCIe 5.0 x4/x2)

1 x M.2 (PCIe 4.0 x4/x2)

4 x SATA 6Gb/s

RAID Support: RAID 0, 1, 5, 10 (NVMe and SATA)

USB Ports:

2 x USB4® Type-C® (back)

1 x USB 3.2 Gen 2 Type-A (red, back)

1 x USB Type-C® (USB 3.2 Gen 2x2)

2 x USB 3.2 Gen 2 Type-A (red, back)

8 x USB 3.2 Gen 1 (4 back, 4 internal)

6 x USB 2.0/1.1 (2 back, 4 internal)

Internal I/O Connectors:

1 x 24-pin ATX main power

2 x 8-pin ATX 12V power

1 x CPU fan, 1 x CPU/water pump, 4 x system fan, 2 x system fan/water pump

3 x RGB Gen2, 1 x RGB LED

4 x SATA 6Gb/s, 4 x M.2

1 x front panel, 1 x front audio

1 x USB Type-C® (USB 3.2 Gen 2x2), 2 x USB 3.2 Gen 1, 2 x USB 2.0/1.1

1 x noise detection, 1 x HDMI

1 x TPM header, 1 x power button, 1 x reset button

2 x temperature sensor, 1 x reset jumper, 1 x Clear CMOS jumper

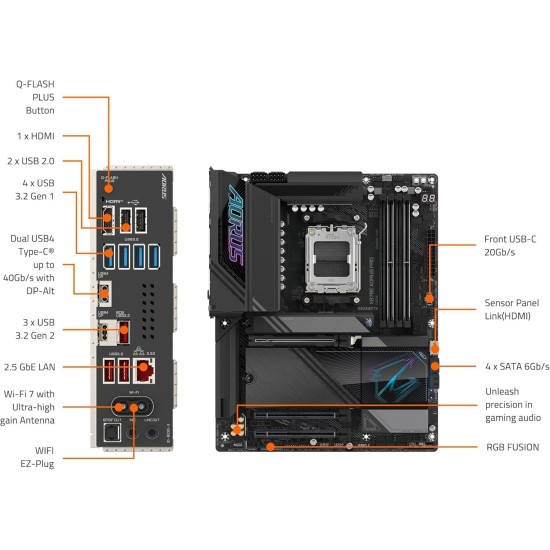

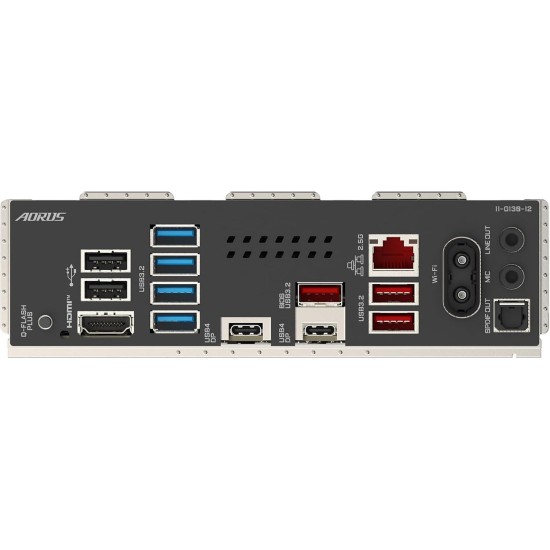

Back Panel I/O Ports:

2 x USB 2.0/1.1

4 x USB 3.2 Gen 1

2 x USB4® Type-C®

3 x USB 3.2 Gen 2 Type-A (red)

1 x HDMI

1 x RJ-45 LAN

2 x antenna connectors

1 x optical S/PDIF Out

2 x audio jacks

1 x Q-Flash Plus button

BIOS: AMI UEFI BIOS, 256 Mbit flash

Unique Features: GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

Operating System Support: Windows 11 64-bit

Form Factor: ATX (30.5cm x 24.4cm)
