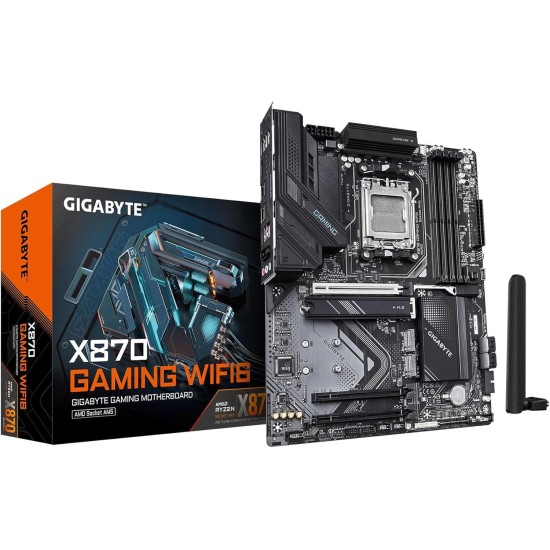

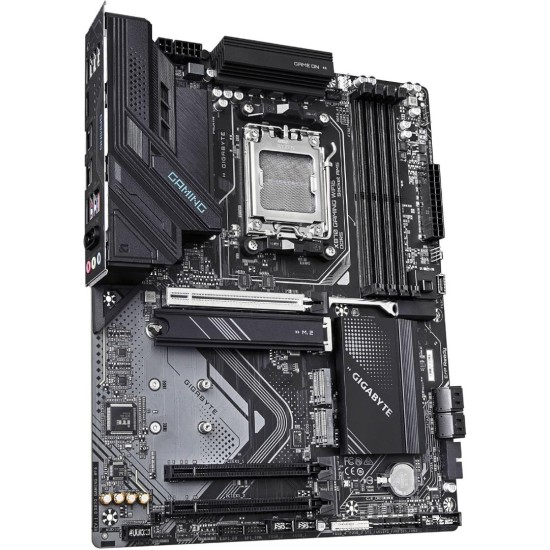

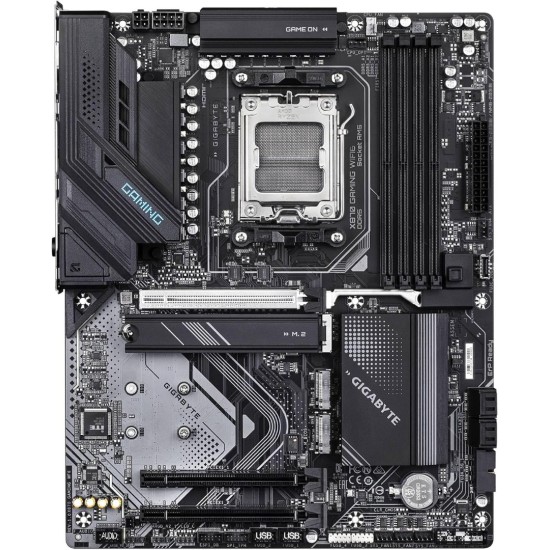

Gigabyte X870 GAMING WIFI6, Motherboard

Motherboard Specification

• Processor Support : AMD Socket AM5, supports Ryzen™ 9000 / 8000 / 7000 Series

• Chipset : AMD X870

• Memory Support : 4 x DDR5 DIMM, up to 256GB, speeds up to 8200 MT/s (OC), dual channel, supports AMD EXPO™ & XMP

• Graphics Ports :

2 x USB4® Type-C (DP 3840x2160@240Hz)

1 x HDMI (4096x2160@60Hz)

Front HDMI (1920x1080@30Hz)

• Expansion Slots :

1 x PCIe x16 (CPU, PCIe 5.0/4.0/3.0 depending on CPU)

2 x PCIe x1 (PCIe 3.0, chipset)

• Storage :

3 x M.2 (PCIe 5.0/4.0 x4/x2, CPU + chipset based)

4 x SATA 6Gb/s

RAID 0/1/5/10 for NVMe & SATA

• Ethernet : Realtek® 2.5GbE LAN

• Wireless & Bluetooth : Realtek® Wi-Fi 6 (RTL8851BE), Bluetooth® 5.3

• USB :

Back: 2 x USB4® Type-C, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0

Internal: USB-C 3.2 Gen 2x2, 4 x USB 2.0, 1 x USB 3.2 Gen 1 header (2 ports)

• Audio : Realtek® Audio CODEC, 7.1 Channel HD Audio, S/PDIF Out

• Internal I/O Connectors :

1 x 24-pin ATX, 1 x 8-pin + 1 x 4-pin ATX 12V

6 x Fan headers, 3 x ARGB Gen2, 1 x RGB

4 x SATA, 3 x M.2

USB-C 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0

TPM header, Reset/CMOS jumpers

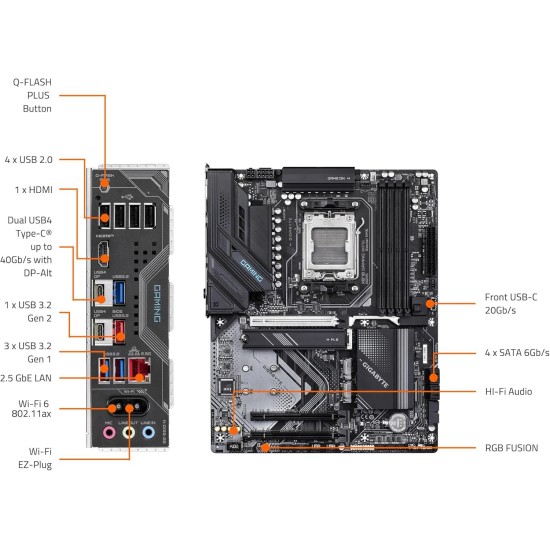

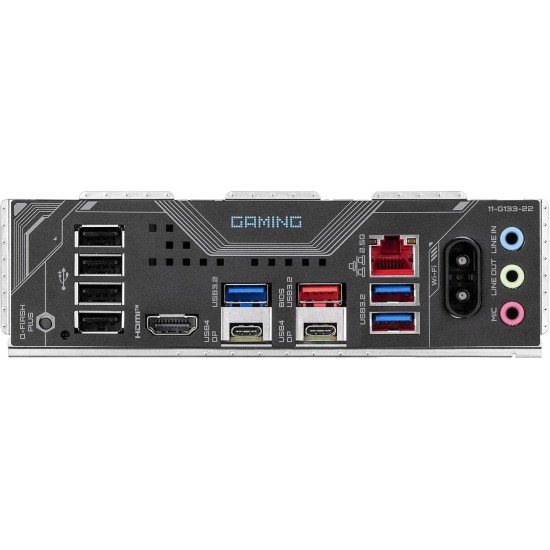

• Back Panel I/O Ports :

1 x Q-Flash Plus button

1 x HDMI, 2 x USB4® Type-C

1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1

4 x USB 2.0, 1 x RJ-45

3 x Audio jacks, 2 x SMA Wi-Fi antenna

• Form Factor : ATX, 30.5cm x 24.4cm
