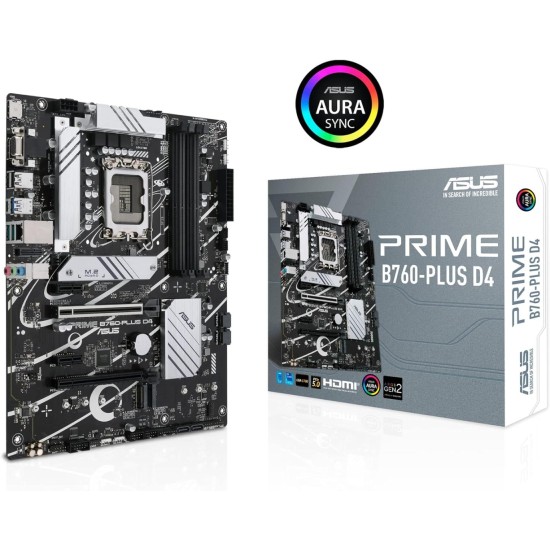

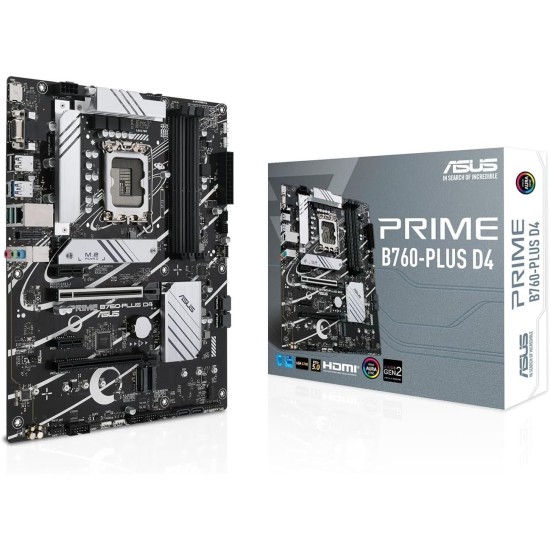

ASUS PRIME B760-PLUS D4

Motherboard Specification

• Processor Support: Intel Core 14th, 13th, 12th Gen, Pentium Gold, Celeron (LGA1700)

• Chipset: Intel B760

• Memory Support: 4x DDR4 up to 128GB, up to 5066+ MHz OC, Intel XMP

• Graphics Ports: HDMI 2.1, DisplayPort 1.4, VGA

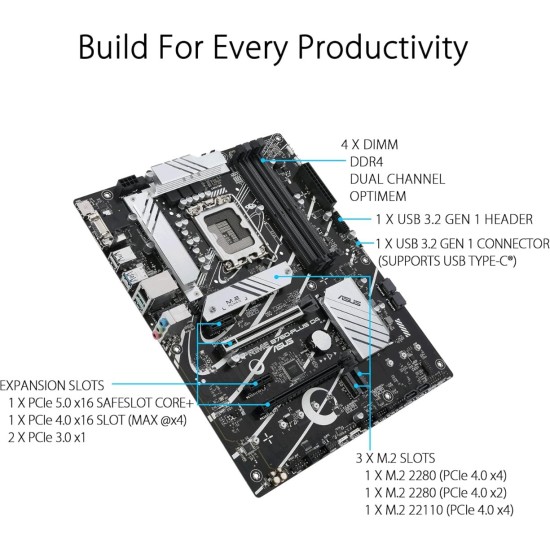

• Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 3.0 x1

• Storage: 3x M.2 (PCIe 4.0 x4/x2), 4x SATA 6Gb/s, RAID 0/1/5/10

• Ethernet: Realtek 2.5Gb LAN

• Wireless & Bluetooth: M.2 E-Key slot (Wi-Fi module not included)

• USB: USB-C Gen2x2, USB-C Gen1, USB-A Gen2/Gen1/2.0 (rear & front)

• Audio: Realtek 7.1 HD Audio, 24-bit/192kHz, Audio shielding

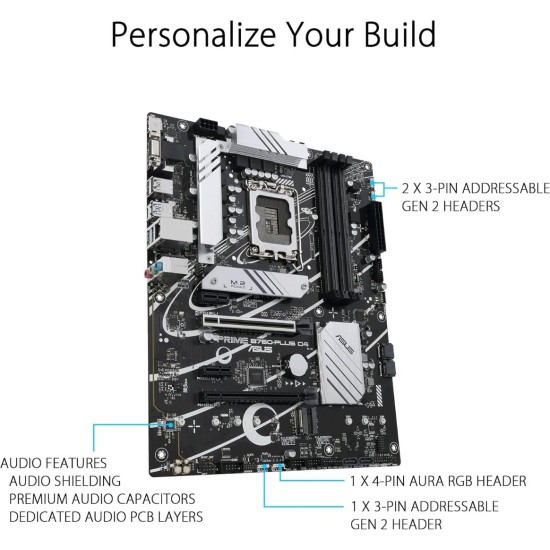

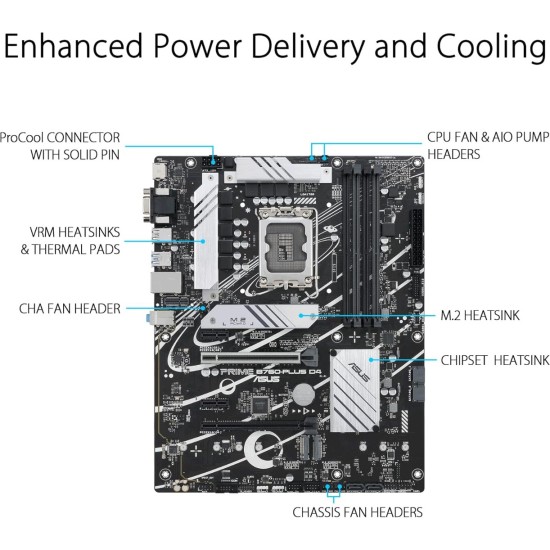

• Internal I/O Connectors: 24-pin & 8-pin power, 5x FAN, AIO, 3x ARGB, RGB, USB headers, Thunderbolt, TPM

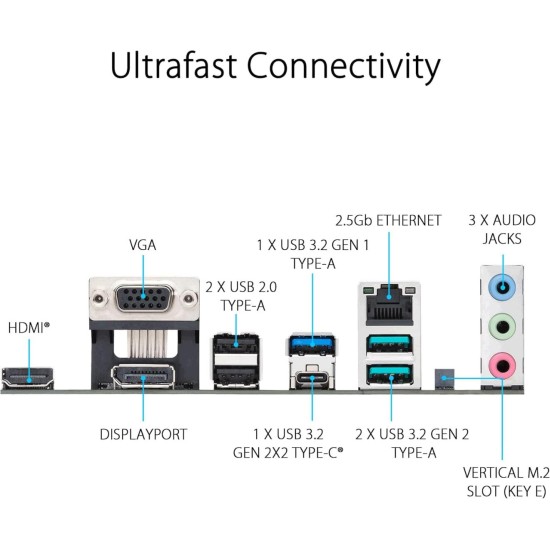

• Back Panel I/O Ports: HDMI, DP, VGA, USB-C, USB-A (Gen2/Gen1/2.0), 2.5G LAN, Audio, M.2 E-Key

• Form Factor: ATX (30.5 x 24.4 cm)
