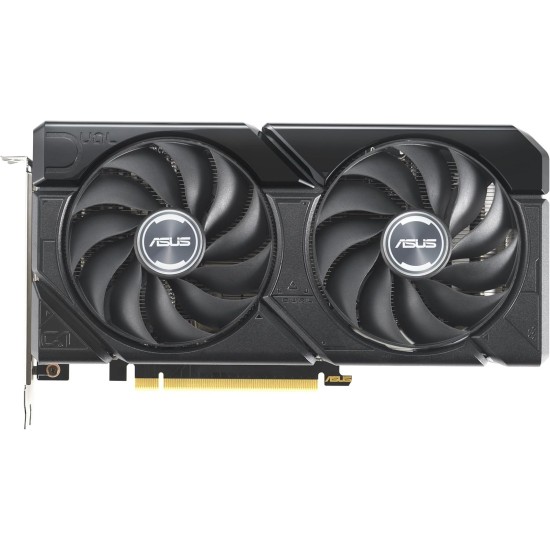

ASUS Dual GeForce RTX™ 4060 Ti EVO OC Edition 16GB GDDR6

Graphics Card Specifications

Model: ASUS DUAL-RTX4060TI-O16G-EVO

Graphics Engine: NVIDIA® GeForce RTX™ 4060 Ti

AI Performance Index: 361

Bus Standard: PCI Express 4.0

OpenGL Version: 4.6

Video Memory: 16GB GDDR6

Performance

Engine Clock:

OC Mode: 2625 MHz

Default Mode (Boost): 2595 MHz

CUDA Cores: 4352

Memory Speed: 18 Gbps

Memory Interface: 128-bit

Max Digital Resolution: 7680 x 4320

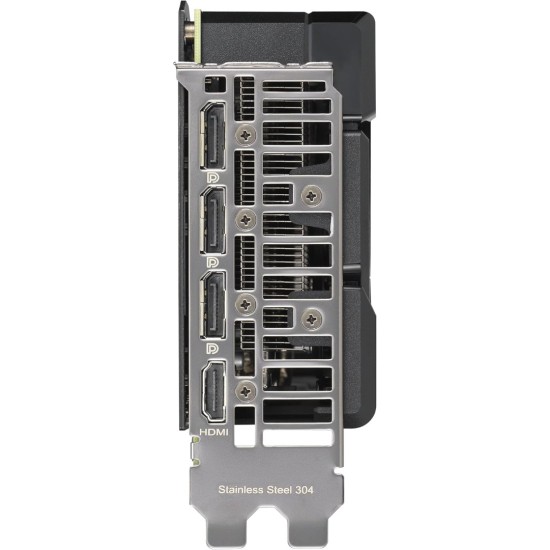

Display Outputs

1 x HDMI 2.1a (native)

3 x DisplayPort 1.4a (native)

HDCP Support: Yes (2.3)

Maximum Displays Supported: 4

Other Features

NVLink / Crossfire Support: No

Recommended PSU: 650W

Power Connectors: 1 x 8-pin

Slot Size: 2.5 Slot

Dimensions

Metric: 227.2 x 123.24 x 49.6 mm

Imperial: 8.94 x 4.85 x 1.95 inches

Accessories Included

1 x SpeedSetup Manual

1 x Thank You Card

Software

ASUS GPU Tweak III

NVIDIA GeForce Game Ready Driver

NVIDIA Studio Driver
