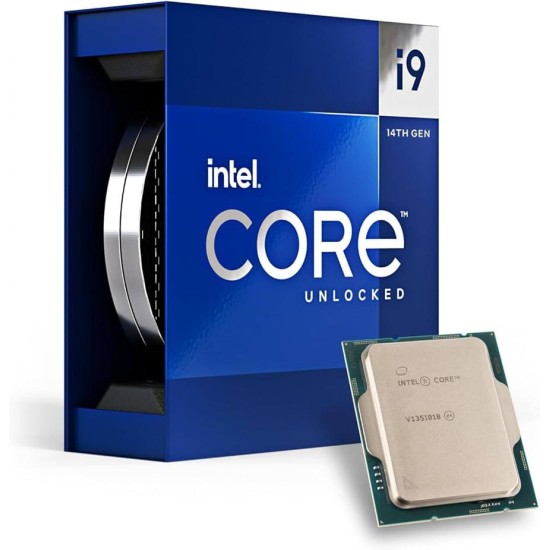

Intel Core i9-14900KS Processor - Try

Processor Specification

Total Cores: 24 (8 Performance-cores, 16 Efficient-cores)

Total Threads: 32

Max Turbo Frequency: 6.2 GHz

Intel® Thermal Velocity Boost Frequency: 6.2 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency: 5.9 GHz

Performance-core Max Turbo Frequency: 5.7 GHz

Efficient-core Max Turbo Frequency: 4.5 GHz

Performance-core Base Frequency: 3.2 GHz

Efficient-core Base Frequency: 2.4 GHz

Cache: 36 MB Intel® Smart Cache

Total L2 Cache: 32 MB

Processor Base Power: 150 W

Maximum Turbo Power: 253 W

Launch Date: Q1'24

Embedded Options Available: No

Use Conditions: PC/Client/Tablet

Memory Specifications

Max Memory Size: 192 GB (dependent on memory type)

Memory Types: Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s

Max # of Memory Channels: 2

Max Memory Bandwidth: 89.6 GB/s

ECC Memory Supported: Yes

GPU Specifications

GPU Name: Intel® UHD Graphics 770

Graphics Base Frequency: 300 MHz

Graphics Max Dynamic Frequency: 1.65 GHz

Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units: 32

Max Resolution (HDMI): 4096 x 2160 @ 60Hz

Max Resolution (DP): 7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz

DirectX Support: 12

OpenGL Support: 4.5

OpenCL Support: 3.0

Multi-Format Codec Engines: 2

Intel® Quick Sync Video: Yes

Intel® Clear Video HD Technology: Yes

# of Displays Supported: 4

Direct Media Interface (DMI) Revision: 4.0

Max # of DMI Lanes: 8

Scalability: 1S Only

PCI Express Revision: 5.0 and 4.0

PCI Express Configurations: Up to 1x16+4, 2x8+4

Package Specifications

Sockets Supported: FCLGA1700

Max CPU Configuration: 1

TJUNCTION (Max Operating Temperature): 100°C

Package Size: 45.0 mm x 37.5 m
