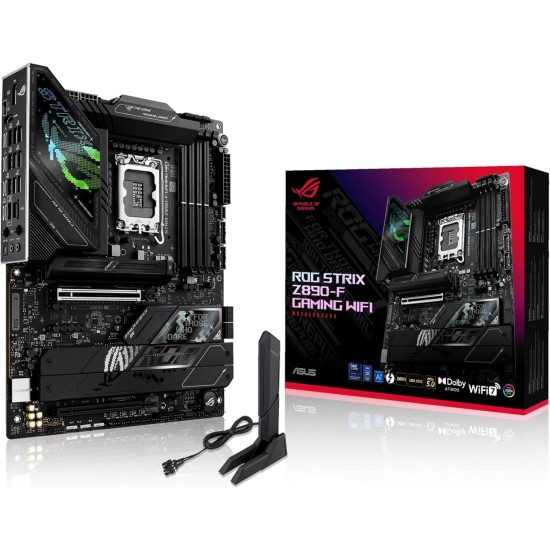

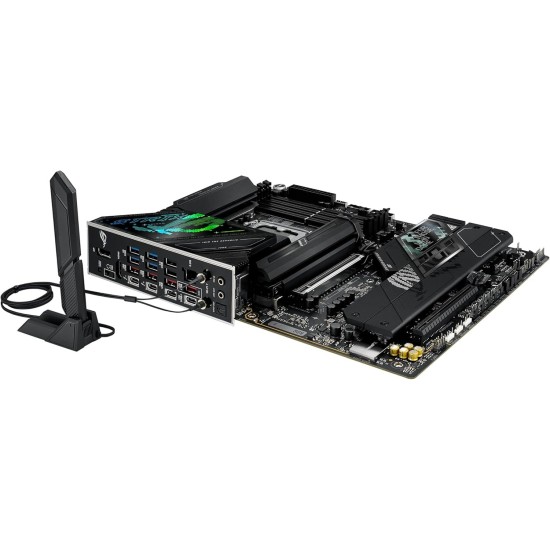

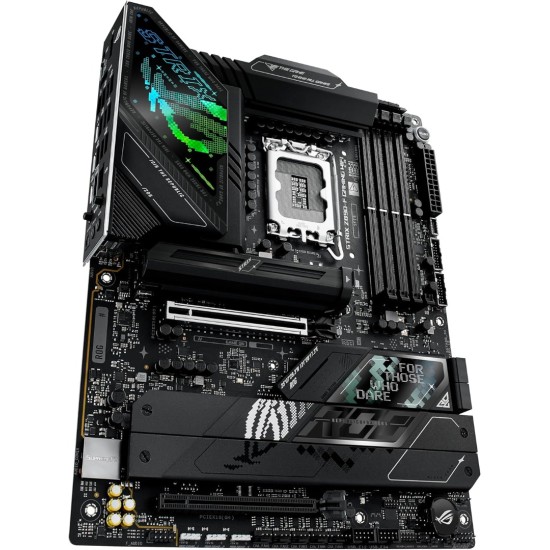

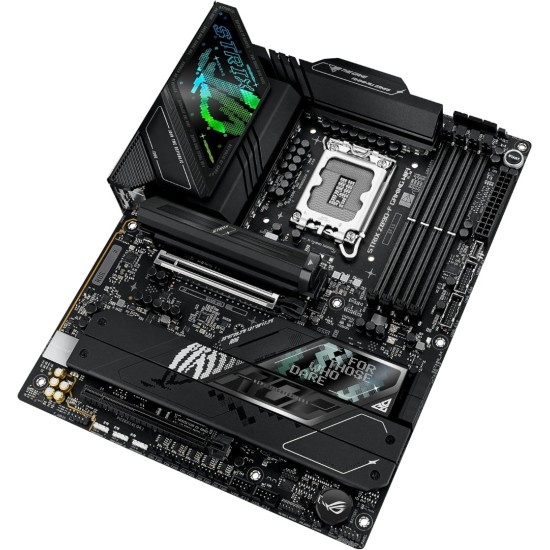

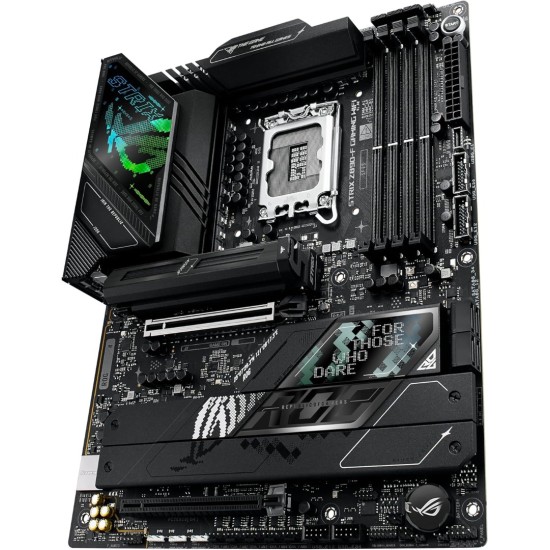

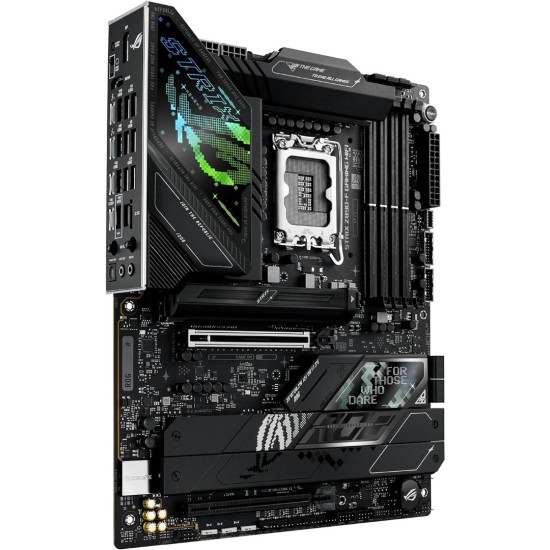

ASUS ROG STRIX Z890-F GAMING WIFI

Motherboard Specification

• Processor Support: Intel Core Ultra (Series 2), LGA1851

• Chipset: Intel Z890

• Memory Support: 4x DDR5 up to 256GB, up to 8600+ MT/s (OC), Dual Channel, XMP, DIMM Flex, AEMP III

• Graphics Ports: HDMI 2.1, DisplayPort 1.4, 2x Thunderbolt 4 (USB-C, DP)

• Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16

• Storage: 5x M.2 (PCIe 5.0/4.0, SATA), 4x SATA 6Gb/s, Intel RST RAID support

• Ethernet: Intel 2.5Gb LAN, ASUS LANGuard

• Wireless & Bluetooth: Wi-Fi 7 (802.11be), Bluetooth 5.4

• USB: 2x Thunderbolt 4 USB-C, USB-C 20G, USB-C 10G, USB-C Fast-Charge, USB-A 10G/5G/2.0, USB headers

• Audio: ROG SupremeFX ALC4080, 7.1 HD, 32-bit/384kHz, Savitech AMP, S/PDIF

• Internal I/O Connectors: 24-pin, 2x 8-pin CPU, 5x M.2, 4x SATA, 5x FAN, USB-C 20G, USB headers, RGB, Thunderbolt header

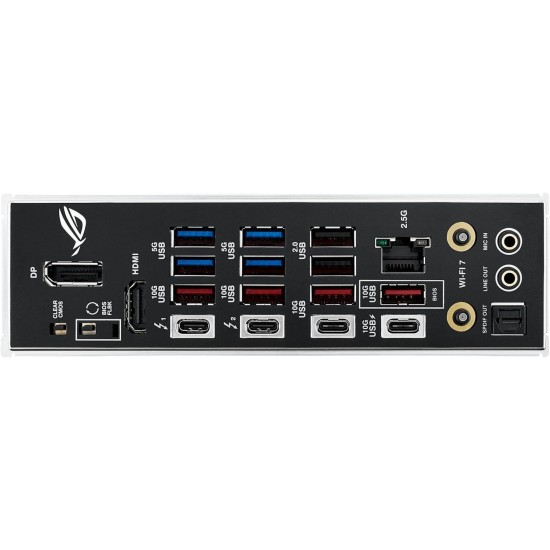

• Back Panel I/O Ports: 2x Thunderbolt 4 USB-C, USB-C Fast-Charge, USB-A (10G/5G/2.0), HDMI, DP, Wi-Fi, Intel 2.5Gb LAN, Audio jacks, S/PDIF, BIOS FlashBack, Clear CMOS

• Form Factor: ATX (30.5 x 24.4 cm)
