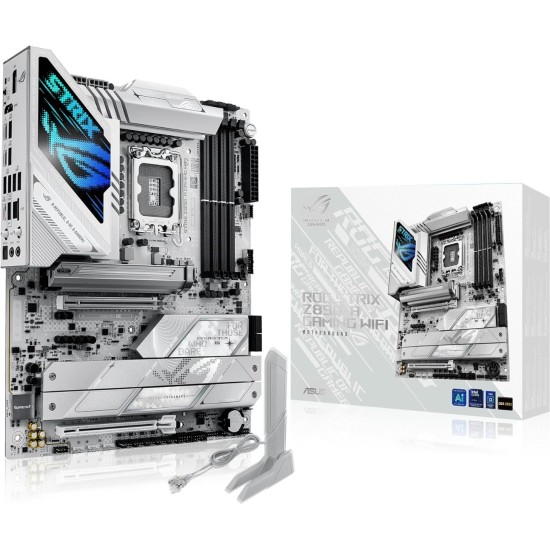

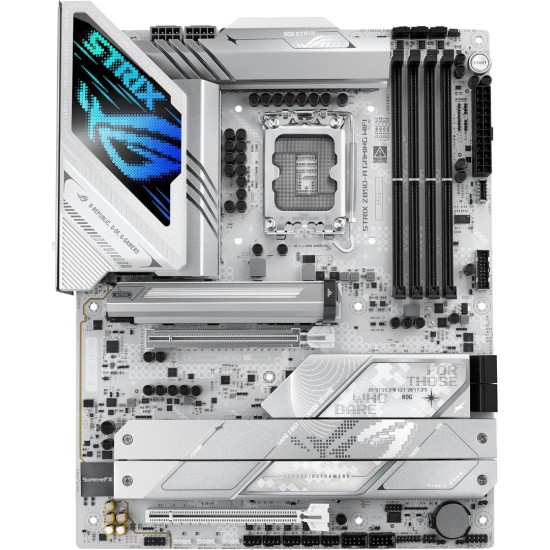

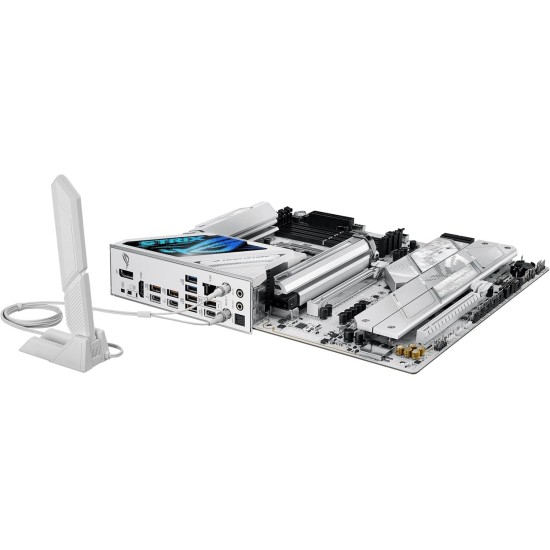

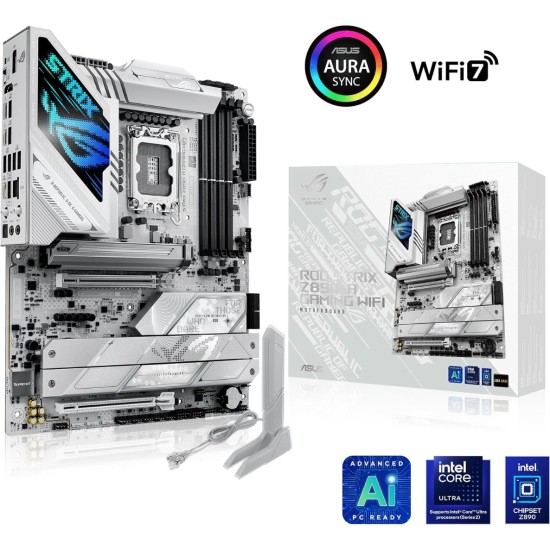

ASUS ROG STRIX Z890-A GAMING WIFI

Motherboard Specification

• Processor Support : Intel® Core™ Ultra Processors (Series 2)

• Chipset : Intel® Z890 Chipset

• Memory Support : 4x DDR5 DIMM, up to 9066+MT/s (OC), 256GB max, Dual channel, Non-ECC/Unbuffered/CUDIMM, XMP, DIMM Flex, DIMM FIT, AEMP III

• Graphics Ports : 1x DisplayPort, 1x HDMI 2.1, 2x Thunderbolt™ 4 (DisplayPort/Thunderbolt video outputs)

• Expansion Slots : 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode)

• Storage : 5x M.2 (PCIe 5.0/4.0/SATA), 4x SATA 6Gb/s, Intel® RST RAID 0/1/5/10 support

• Ethernet : 1x Intel® 2.5Gb Ethernet (ASUS LANGuard)

• Wireless & Bluetooth : Wi-Fi 7 (802.11be), Bluetooth® v5.4

• USB : Rear: 2x Thunderbolt™ 4 (USB-C), 6x USB 10Gbps (5x Type-A + 1x Type-C), 2x USB 5Gbps (Type-A); Front: 1x USB 20Gbps (Type-C), 2x USB 5Gbps (2 ports), 4x USB 2.0 ports

• Audio : ROG SupremeFX ALC4080 7.1 Surround Sound, S/PDIF out, Savitech SV3H712 AMP, Premium Capacitors

• Internal I/O Connectors : 5x M.2 slots, 4x SATA ports, 5x 4-pin Fan headers, USB 20Gbps (Type-C), USB 5Gbps, USB 2.0, Thunderbolt™ (USB4®) header, RGB/ARGB headers, Thermal Sensor, Front Audio, Start Button

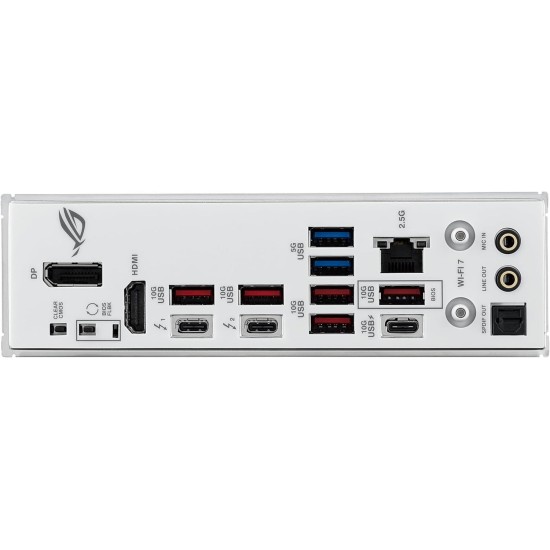

• Back Panel I/O Ports : 2x Thunderbolt™ 4 (USB-C), 6x USB 10Gbps, 2x USB 5Gbps, 1x DisplayPort, 1x HDMI, 1x Intel® 2.5GbE LAN, 1x Wi-Fi module, 2x Audio jacks, 1x Optical S/PDIF out, BIOS FlashBack™ Button, Clear CMOS Button

• Form Factor : ATX (30.5 cm x 24.4 cm)
