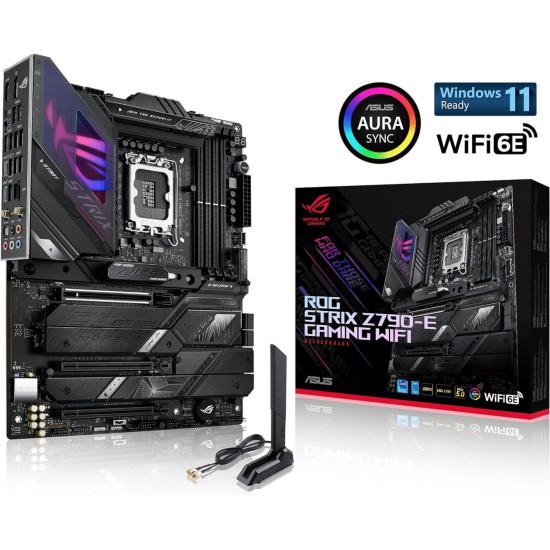

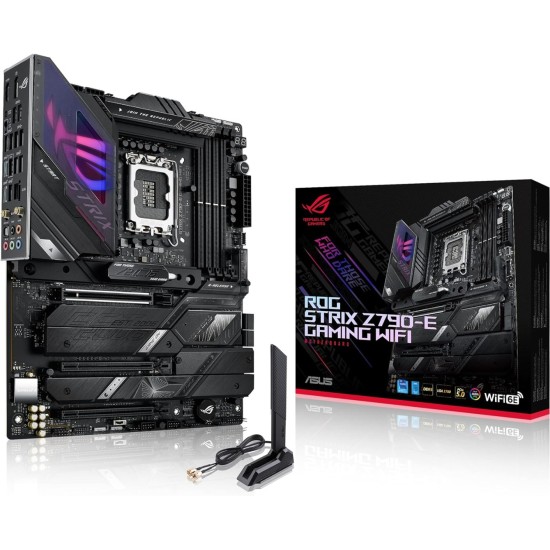

ASUS ROG STRIX Z790-E GAMING WIFI

Motherboard Specification

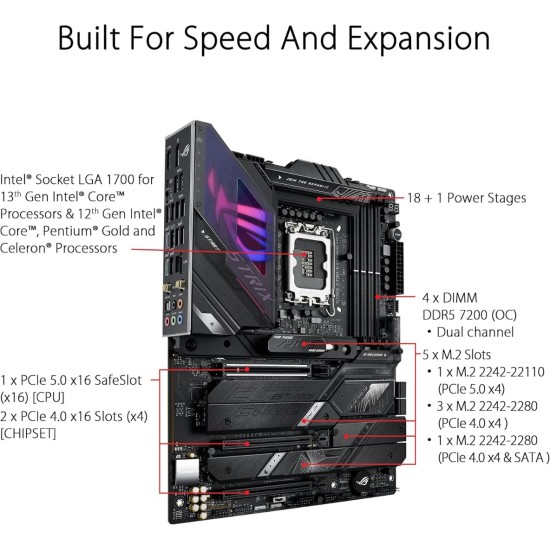

Processor Support: Intel® LGA1700 for 14th, 13th, 12th Gen Core™, Pentium® Gold, and Celeron® Processors

Chipset: Intel® Z790

Memory Support: 4 x DIMM, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered

Graphics Ports: 1 x DisplayPort, 1 x HDMI®

Expansion Slots: 1 x PCIe 5.0 x16 slot, 2 x PCIe 4.0 x16 slots (x4 mode)

Storage: 5 x M.2 slots, 4 x SATA 6Gb/s ports

Ethernet: 1 x Intel® 2.5Gb

Wireless & Bluetooth: Wi-Fi 6E, Bluetooth® v5.3

Rear USB: 1 x USB 3.2 Gen 2x2 Type-C®, 7 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1

Front USB: 1 x USB 3.2 Gen 2x2 Type-C®, 4 x USB 3.2 Gen 1, 4 x USB 2.0

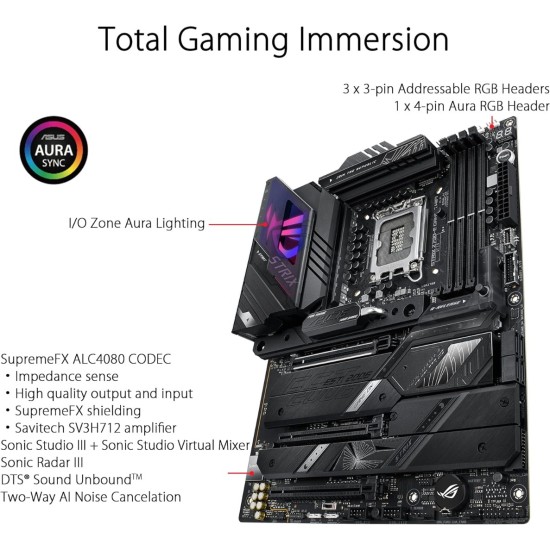

Audio: ROG SupremeFX 7.1, ALC4080

Internal I/O Connectors: Fan headers, Power connectors, M.2 slots, SATA ports, USB headers

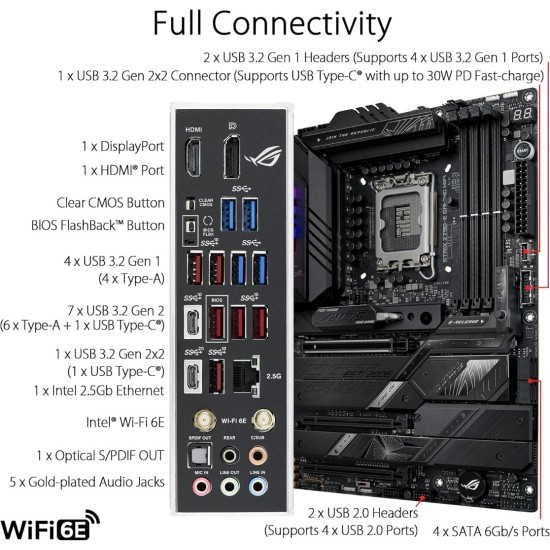

Back Panel I/O Ports: USB ports, HDMI™, DisplayPort, Wi-Fi, Ethernet, audio jacks, BIOS FlashBack™, Clear CMOS

Form Factor: ATX, 12 x 9.6 inches (30.5 x 24.4 cm)
