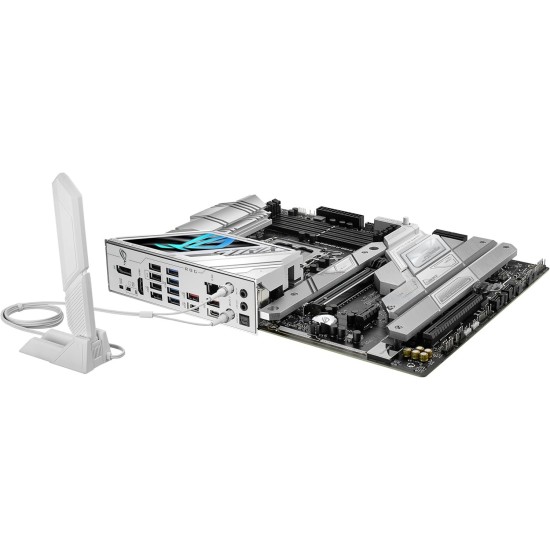

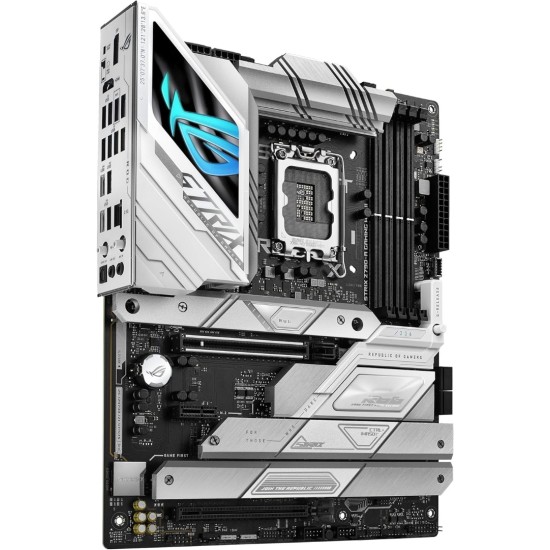

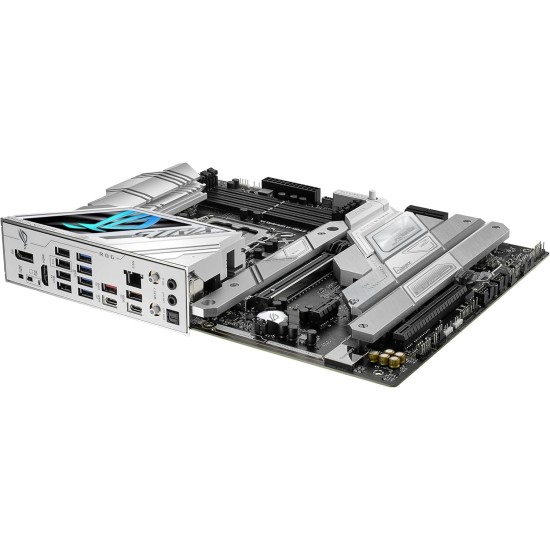

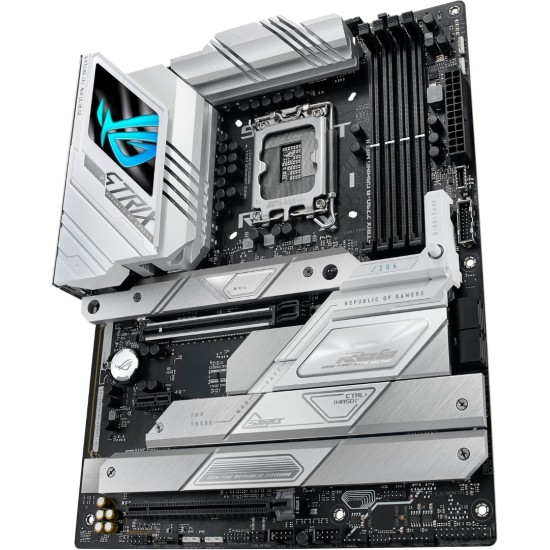

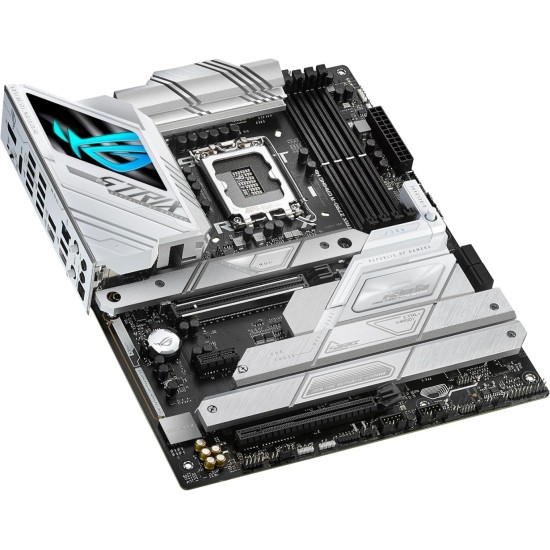

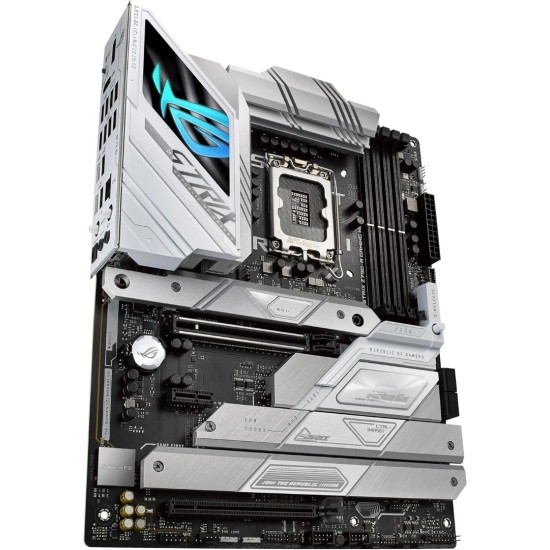

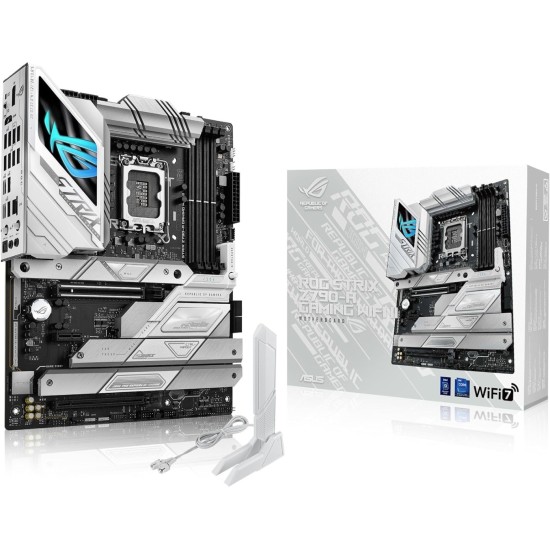

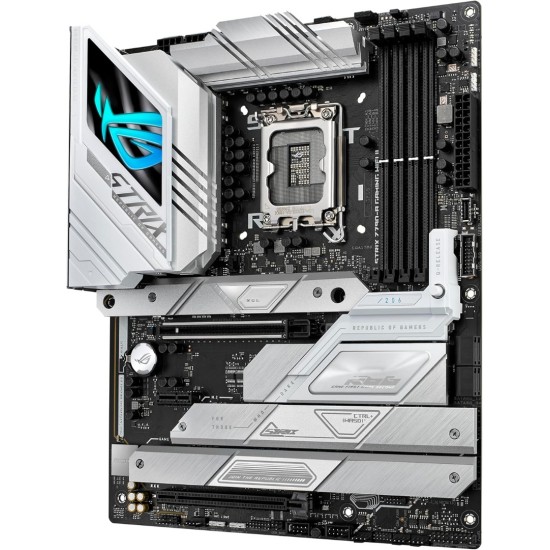

ASUS ROG STRIX Z790-A GAMING WIFI II

Motherboard Specifications

Model: ROG STRIX Z790-A GAMING WIFI II

Form Factor: ATX (30.5 × 24.4 cm)

Chipset: Intel® Z790

CPU Support

Socket: LGA1700

Supported CPUs:

Intel® Core™ 14th / 13th / 12th Gen

Pentium® Gold and Celeron®

Technologies:

Intel® Turbo Boost Technology 2.0 & 3.0

CPU support list available at www.asus.com

Memory

DIMM Slots: 4 × DDR5

Max Capacity: Up to 192GB

Max Speed: DDR5 8000+ (OC)

Memory Features:

Dual Channel

Intel® XMP Support

AEMP II

ASUS OptiMem II

Graphics Outputs

1 x DisplayPort 1.4 – supports up to 8K@60Hz

1 x HDMI 2.1 – supports up to 4K@60Hz

Expansion Slots

1 x PCIe 5.0 x16 (CPU)

1 x PCIe 4.0 x16 (x4 mode)

1 x PCIe 3.0 x1

Storage Options

5 x M.2 Slots:

M.2_1: PCIe 4.0 x4 (2242–22110)

M.2_2 to M.2_5: PCIe 4.0 x4 (2280)

4 x SATA 6Gb/s Ports

RAID Support: RAID 0 / 1 / 5 / 10

Networking

LAN: Intel® 2.5Gb Ethernet

Wi-Fi: Wi-Fi 7 (up to 2.4Gbps)

Bluetooth: Version 5.4

USB Ports

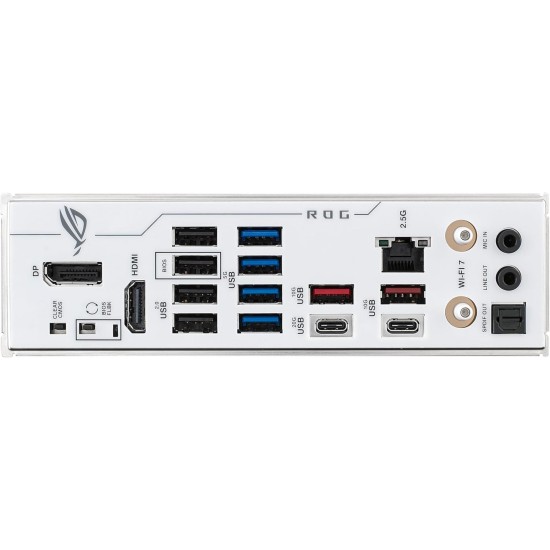

Rear I/O:

1 × USB 3.2 Gen 2x2 Type-C (20Gbps)

3 × USB 3.2 Gen 2 (2 × Type-A, 1 × Type-C)

4 × USB 3.2 Gen 1 (Type-A)

4 × USB 2.0

Front I/O Support:

1 × USB 3.2 Gen 2x2 Type-C (20Gbps, 30W PD)

2 × USB 3.2 Gen 1 (5Gbps)

4 × USB 2.0

Audio

Chipset: ROG SupremeFX ALC4080

Output: S/PDIF Out

Features:

Savitech SV3H712 AMP

120dB SNR

32-bit / 384kHz playback support

Cooling & Headers

7 × Fan headers:

CPU

AIO

Chassis

Special Features

BIOS FlashBack™

Q-Release (PCIe slot quick release)

Q-Latch (tool-less M.2)

Aura Sync RGB Lighting

Integrated M.2 Heatsinks

Included Accessories

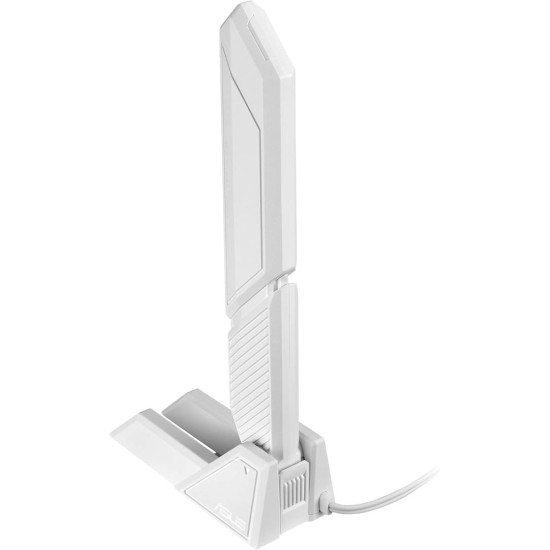

Wi-Fi Antenna

SATA Cables

M.2 Installation Kits

Software Suite

Armoury Crate

AI Suite 3

DTS Sound Unbound

Sonic Studio
