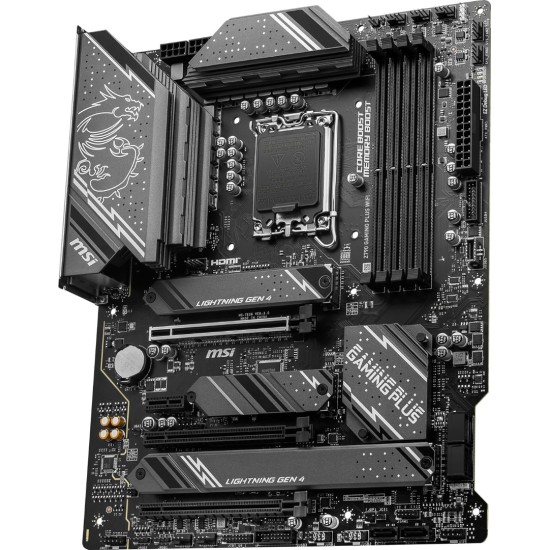

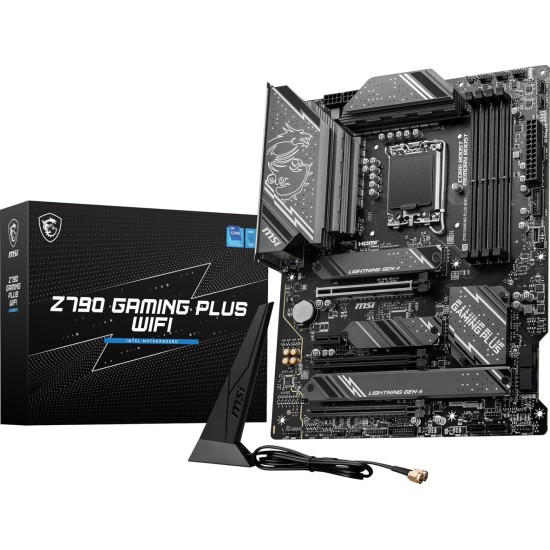

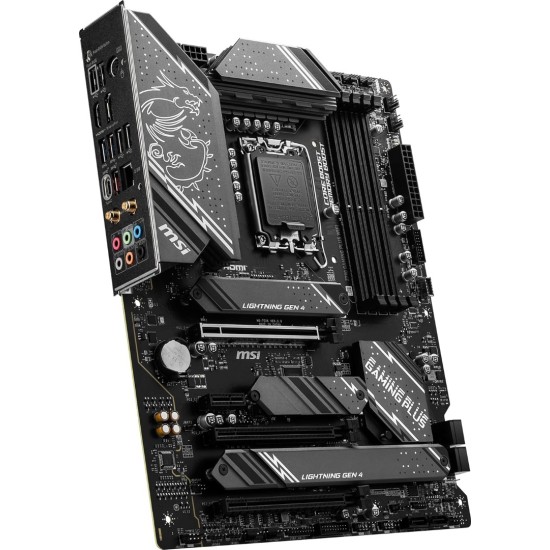

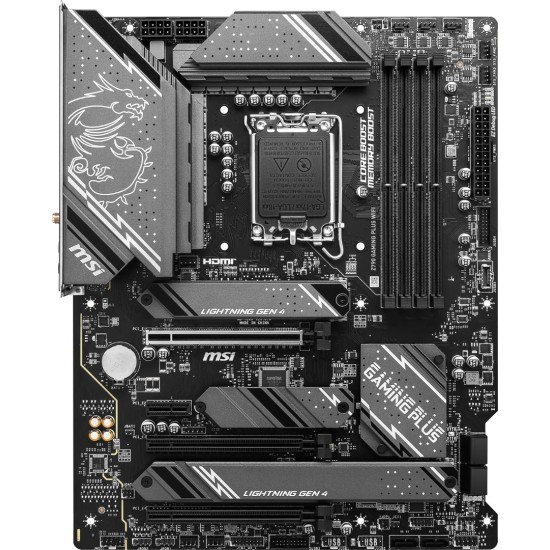

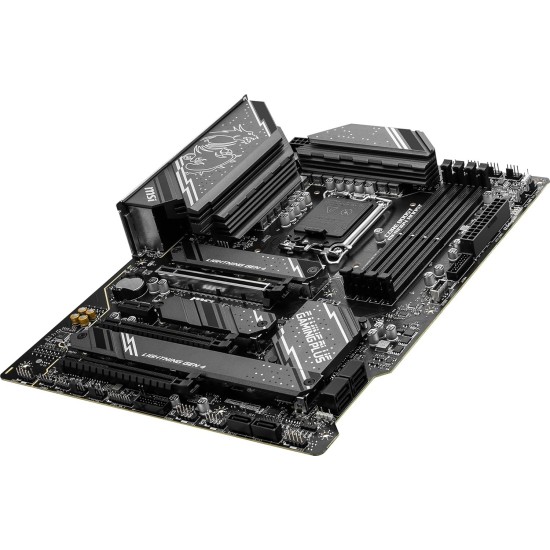

MSI Z790 GAMING PLUS D5 WIFI , Motherboard

Motherboard Specification

Processor Support: Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron® (LGA 1700)

Chipset: Intel® Z790

Memory Support: 4x DDR5, up to 256GB, up to 7200+(OC) MHz, Dual-Channel, XMP 3.0

Graphics Ports: 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz)

Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 2x PCIe 3.0 x1

Storage: 4x M.2 (PCIe Gen4), 6x SATA 6Gb/s, RAID 0/1/5/10 supported

Ethernet: Intel® 2.5Gb LAN

Wireless & Bluetooth: Intel® Wi-Fi 6E + Bluetooth 5.3

USB: Rear: 4x USB 2.0, 2x USB 5Gbps, 1x USB 10Gbps, 1x USB-C 20Gbps; Front: 4x USB 2.0, 4x USB 5Gbps, 1x USB-C 10Gbps

Audio: Realtek® ALC897, 7.1-Channel HD Audio

Internal I/O Connectors: ATX_PWR, CPU_PWR x2, CPU/Pump/System Fan headers, USB headers, RGB & ARGB headers, TPM, JDASH, JTBT_U4

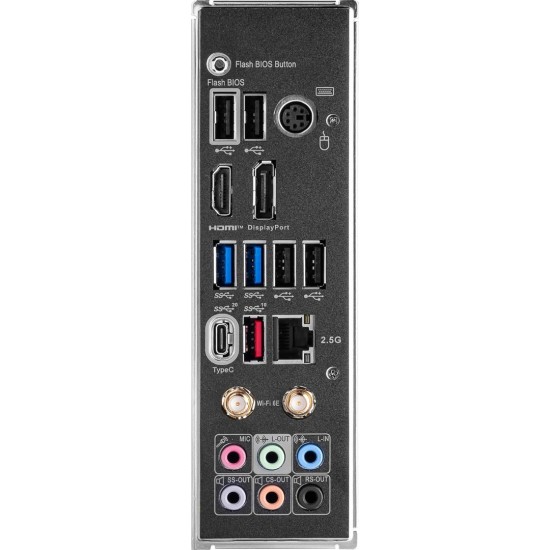

Back Panel I/O Ports: DisplayPort, HDMI, USB ports (2.0 / 5Gbps / 10Gbps / 20Gbps), 2.5G LAN, Audio jacks, Flash BIOS, Wi-Fi antenna

Form Factor: ATX (30.5 cm x 24.4 cm)
