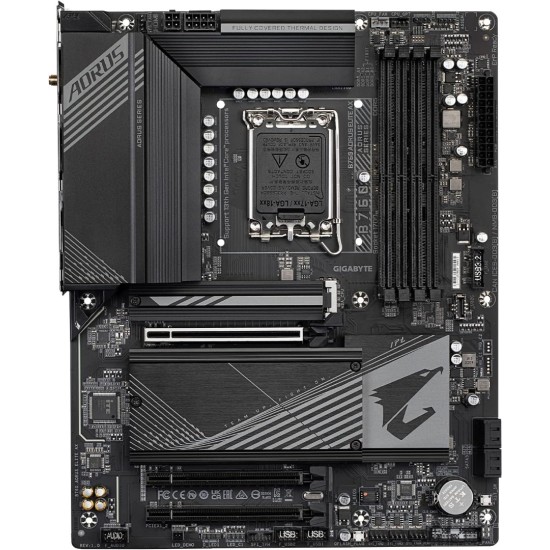

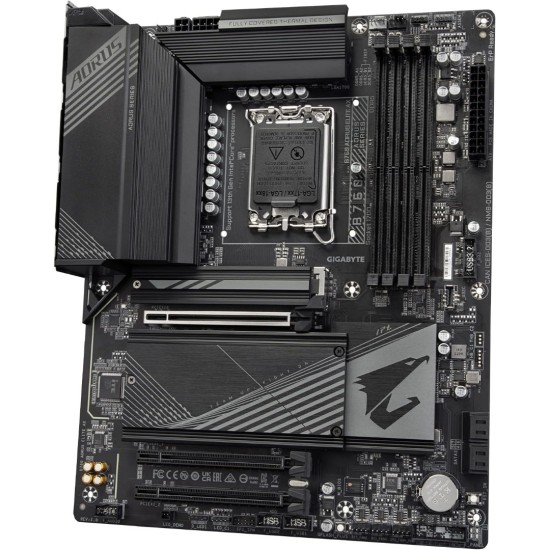

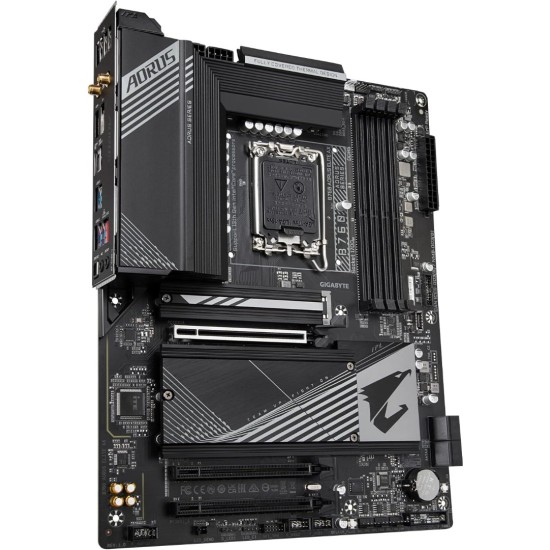

Gigabyte B760 AORUS ELITE AX

Motherboard Specification

CPU Socket: LGA1700

CPU Support: 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors

Chipset: Intel® B760 Express Chipset

Memory

Supported Memory Type: DDR5

Supported Memory Speeds (O.C.): Up to 7800 MT/s

Memory Capacity: 4 x DDR5 DIMM, up to 256 GB (64 GB per DIMM)

Memory Architecture: Dual channel

ECC Support: ECC Un-buffered DIMM (operates in non-ECC mode)

XMP Support: Yes

Graphics

Integrated Graphics Processor: Intel® HD Graphics

HDMI Port: 1x HDMI 2.1 (4096x2160@60 Hz)

DisplayPort: 1x DP 1.2 (4096x2304@60 Hz)

Audio

Audio Codec: Realtek® Audio CODEC

Audio Channels: 2/4/5.1/7.1

Optical S/PDIF Out: Yes

Networking

Ethernet: Realtek® 2.5GbE LAN

Wi-Fi: Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) or Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)

Bluetooth: 5.3

Expansion Slots

PCI-E x16 (CPU): 1 x PCIe 4.0 x16

PCI-E x1 (Chipset): 2 x PCIe 3.0 x1

Storage Interface

M.2 Slots:

CPU: 1 x M.2 PCIe 4.0 x4/x2

Chipset: 2 x M.2 PCIe 4.0 x4/x2

SATA Ports: 4 x SATA 6Gb/s

RAID Support: RAID 0, 1, 5, 10

USB Ports

USB 3.2 Gen 2 Type-C®: 2 (1 rear, 1 internal)

USB 3.2 Gen 2 Type-A: 1 (rear)

USB 3.2 Gen 1: 6 (4 rear, 2 internal)

USB 2.0/1.1: 8 (4 rear, 4 internal)

Internal I/O Connectors

Power Connectors: 24-pin ATX, 8-pin ATX 12V, 4-pin ATX 12V

Fan Headers: 4 (including water cooling support)

RGB Headers: 2 x Addressable, 2 x RGB LED

Front Panel Audio Header: Yes

Internal USB Headers:

1 x USB Type-C® (Gen 2)

1 x USB 3.2 Gen 1

2 x USB 2.0/1.1

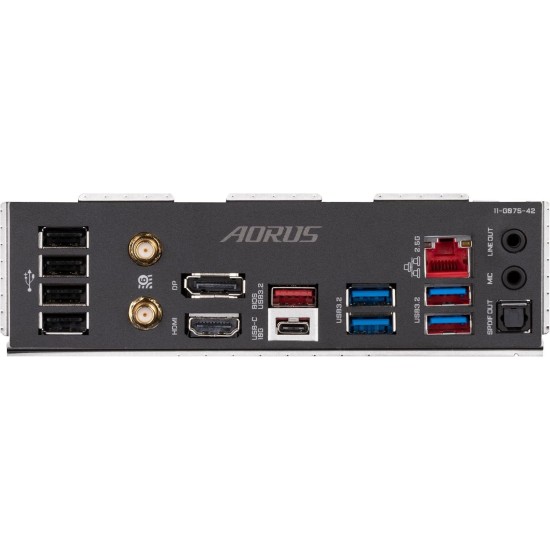

Back Panel I/O Ports

USB Type-C®: 1 x USB 3.2 Gen 2

USB 3.2 Gen 2 Type-A: 1

USB 3.2 Gen 1: 4

USB 2.0/1.1: 4

HDMI Port: 1

DisplayPort: 1

Ethernet Port: 1 x RJ-45

Audio Jacks: 2

Antenna Connectors: 2 x SMA

BIOS

Size: 256 Mbit

Type: AMI UEFI BIOS

Features: Q-Flash, Q-Flash Plus

Operating System Support

Windows 11 64-bit

Windows 10 64-bit

Form Factor:

ATX (30.5 cm x 24.4 cm)
